SML0934
The main technical parameter of SML0932 Segment LCD
Operating Voltage
3.0V
Drive Mode
1/3BIAS,1/4DUTY
Display Type
TN
Display Mode
Transflective, Positive
Connection
Metal Pin

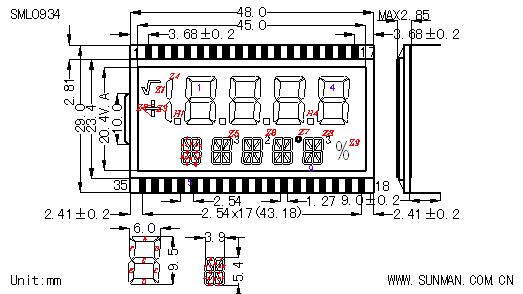

The diagram of SML0934 Segment LCD
The download of SML0934 Segment LCD
User manual
SML0934.PDF
[PDF File] [Modified Date:2010-03-11] [Size:47,600 bytes]
